Retaining Wall Cost in Central Alberta: What to Expect

A retaining wall in Central Alberta runs roughly $5,000 to $10,000 for a short pressure-treated timber wall, $15,000 to $35,000 for a mid-size concrete block wall of 3 to 5 feet, and $35,000 to $60,000 or more for a large engineered or tiered system, with armour stone feature walls around $20,000 to $50,000 and up. Height is the single biggest cost driver.

Retaining wall costs vary more than almost any other outdoor project. A simple timber wall to contain a garden bed is a different job entirely from a 6-foot engineered block wall holding back a hillside. Here's how to think about cost, and what determines whether a wall is still standing in 20 years.

The main cost drivers for retaining walls in Alberta

Height

Wall height is the single biggest cost driver. Below 3 feet, most materials can be stacked without supplemental reinforcement. Above 3 feet, Alberta code and engineering best practice require geogrid reinforcement, horizontal mesh layers extending back into the retained grade that redistribute the lateral load. Above 4 feet in most Red Deer area municipalities, a permit and stamped engineering are required.

The cost of a wall doesn't scale linearly with height. A 4-foot wall costs significantly more than twice what a 2-foot wall costs because of the footing depth, geogrid layers, and drainage system required.

Material

Three materials dominate retaining wall construction in Central Alberta: concrete block, pressure treated timber, and natural stone. Each has a different cost profile and performance profile.

Concrete block (Versa-Lok, Allan Block) is the most versatile and our most common specification. The engineered batter and pin system handles Alberta freeze-thaw cycles without cracking. Properly installed with drainage aggregate and geogrid, a concrete block wall will outlast a timber wall by decades.

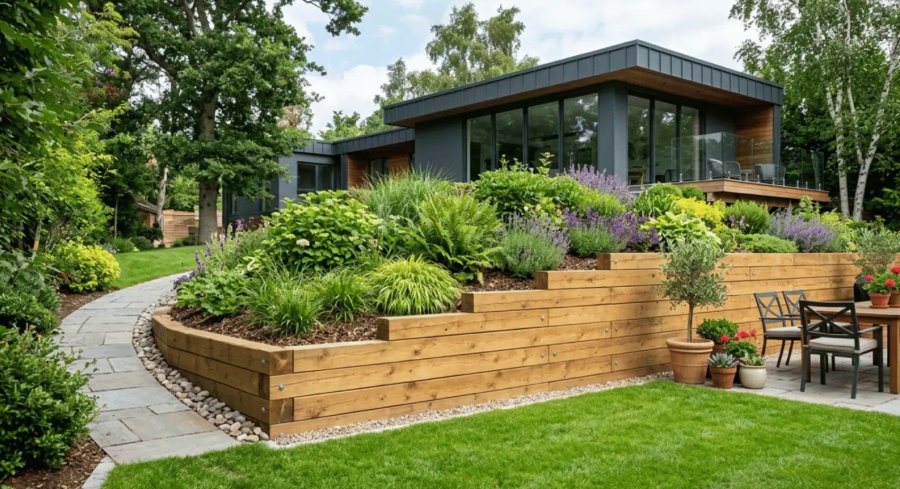

Pressure treated timber is the fastest and least expensive option for walls under 4 feet. We use 6x6 or 8x8 PT lumber with deadman anchors for walls over 3 feet. Lifespan with quality PT lumber is 20-30 years. It's a good choice for smaller grade changes where budget is a real constraint.

Natural stone, fieldstone or armour stone, is the most permanent and most expensive option. Armour stone requires equipment for placement. The result is a wall that's essentially permanent and improves visually over time.

Drainage

This is the most commonly skipped item in low-budget retaining wall quotes, and the most important. Water pressure behind a wall is what causes failure. Every retaining wall we build includes drainage aggregate, geotextile fabric, and weeping tile behind the wall to route water away from the structure. A wall without drainage is a wall with a failure mode built in from day one.

Typical retaining wall costs in Central Alberta

Small PT timber wall (under 3 feet, 20-30 linear feet): $5,000 to $10,000.

Mid-size concrete block wall (3-5 feet, 30-50 linear feet): $15,000 to $35,000.

Large engineered block system (5 feet+, complex grade, tiered): $35,000 to $60,000+.

Armour stone feature wall or dramatic grade change: $20,000 to $50,000+, depending on access and stone quantity.

Why retaining walls fail in Alberta

Inadequate drainage is the leading cause of retaining wall failure. Without drainage aggregate and weeping tile, hydrostatic pressure builds behind the wall and eventually pushes it out or tips it forward. This can happen in as few as 3-5 years after installation.

Insufficient footing depth is the second most common cause. Alberta's frost depth demands footings set below the freeze line. Walls built on inadequate footings heave with the frost and never recover level.

Undersized or missing geogrid for taller walls. Without geogrid reinforcement extending back into the grade, the wall relies entirely on the block mass to resist lateral load. This works for small walls. It fails for large ones.

Permits for retaining walls in Red Deer

Walls over 4 feet tall generally require a building permit and engineering drawings in Red Deer and most Central Alberta municipalities. We prepare the permit package for every applicable project. If you're planning a wall over 4 feet, budget for the permit and engineering as part of the total project cost, it's typically $1,000 to $2,500 depending on complexity.
