Single level 27 by 12 foot Eva-Last bamboo composite deck with aluminum railing in Red Deer, AB - built by Green Ladder Contractors
Composite Deck

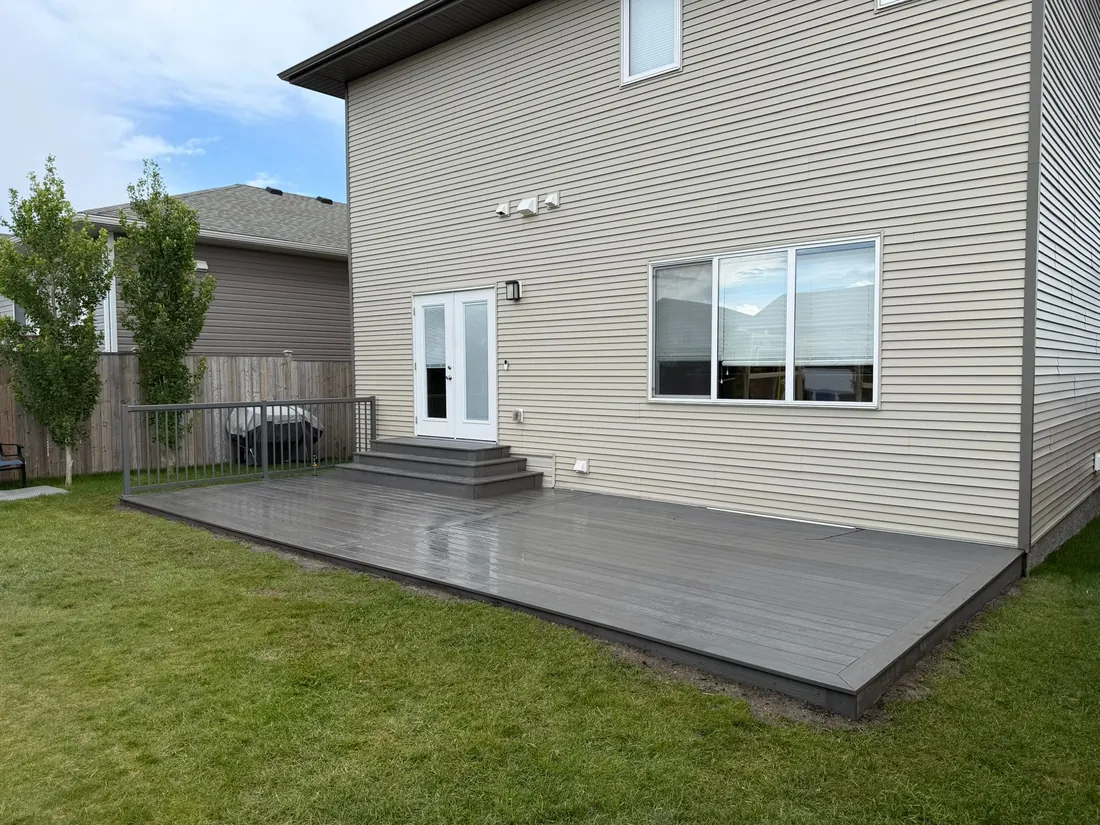

Large Backyard Composite Deck

Red Deer, AB · 2024

A tiered deck in Red Deer replaced with one 27' x 12' single level platform in Eva-Last bamboo composite, so the whole backyard works as one space.

The original deck here was tiered - which broke a good sized space into pieces too small to use well. The homeowner asked for one level instead, a 27' x 12' platform with no step in the middle, so the furniture (and the people) could go anywhere they liked.

We took the old deck apart and recycled the lumber, kept the existing ledger and added structural screws to it. Then the ground was prepped, the drainage corrected, and filter cloth laid underneath for weeds and drainage.

Reframing meant dropping the high section down so the whole deck sits at one level, then residing the wall above the old ledger line and fitting new siding tight to the new ledger with trim, so the house is weather tight again. Every joist run got a row of blocking at 4' and 8' to keep it from moving later on. The joist tops were wrapped in joist guard, and with the deck sitting this close to grade we checked the underside and drainage so the lumber is not sitting in moisture. Everything is hung on Simpson Strong-Tie 18 gauge hangers with GRK structural ledger bolts.

The surface is Eva-Last bamboo composite, and it stays cool underfoot through an Alberta August. We ran a picture frame around the outside plus 1 centre frame board, so there are no butt joints anywhere in the field, and the corners are mitred. The field is laid on hidden fasteners, and the few edge fixings are pre-drilled, countersunk and filled with colour matched plugs.

The 2 steps were built on site off 2x12 stringers at 12" OC, solid blocked, each one picture framed with a 3/4" nosing over a composite riser cover. A composite face cover runs around the deck frame right down to the grass edge, so it looks finished from any angle. The railing is powder coated aluminum, picked to stand up to the weather and to go with the composite.

Project Details

Decking
Eva-Last bamboo composite, hidden fasteners, colour matched plugs at the edges
Size
27' x 12', single level
Structure
Blocking at 4' and 8', joist guard wrap, Simpson Strong-Tie 18 gauge hangers, GRK ledger bolts
Finish
Picture frame plus centre frame board, no butt joints, mitred corners, composite face cover to grade
Steps
2 steps on 2x12 stringers at 12" OC, picture framed with a 3/4" nosing
Railing
Powder coated aluminum
Location
Red Deer, AB
