Undermount vs Drop-In Sink: Which Suits Your Counter
Undermount sinks are easier to clean and demand more from the counter material. Drop-in sinks are more flexible. What decides it.
By David Hutten, Owner, Green Ladder Contractors
The sink decision looks cosmetic and is not. It is decided by your countertop material, it changes how the counter is fabricated, and it is close to impossible to change your mind about later without replacing the top.

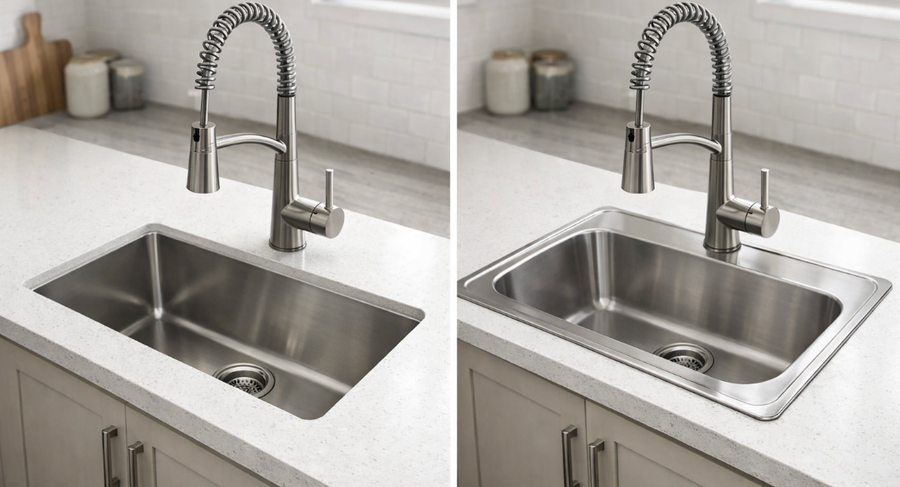

The difference
A drop-in sink, sometimes called a top mount or self rimming sink, drops into a hole cut in the counter and rests on a rim that sits on the surface.
An undermount sink is fixed to the underside of the counter, so the counter edge runs right to the opening and there is no rim on top.
Cleaning is the honest reason people choose undermount
With an undermount you can sweep crumbs and water straight off the counter into the sink in one motion. There is no rim to catch anything and no seal line at the surface to go grey over time.
A drop-in has a bead of sealant where the rim meets the counter. That bead is maintenance. It will need replacing eventually, and in the meantime it is the spot in the kitchen that always looks slightly dirty no matter how well you clean it.
Your counter material decides whether you have the choice
Undermount needs a counter material that can carry the weight and take a polished edge at the opening. Quartz, granite and solid surface all can.
Laminate generally cannot. The cut edge of a laminate counter exposes the particle board core, and water reaching that core is how a laminate top fails. There are purpose built systems that make it possible, but as a rule, laminate means a drop-in. If you are keeping your existing laminate counter and hoping to change to an undermount sink, that is the conversation to have first.
The reveal, and why it is worth deciding on purpose
With an undermount, the relationship between the sink edge and the counter opening is called the reveal, and there are three ways to do it.
A positive reveal leaves a strip of sink rim visible inside the counter opening. A zero reveal lines them up exactly. A negative reveal cuts the counter opening slightly smaller than the sink, so the counter overhangs the sink edge.
Positive is the easiest to clean, because nothing overhangs. Negative looks the cleanest from above and creates a small ledge underneath that catches gunk. Zero looks intentional and is the hardest to fabricate accurately. Say which one you want, because if you do not, you will get whatever the fabricator defaults to.
Support underneath
An undermount sink full of water and dishes is heavy, and it hangs from the counter. It needs proper support: brackets or a support frame in the cabinet below, not just the clips that came in the box.
This is the part that gets skipped, and it is the part that shows up two years later as a sink that has dropped a few millimetres and broken its seal. Ask specifically how the sink is being supported.
Depth, and the drain
Deep sinks are popular and they are genuinely useful for washing a roasting pan. They also eat cabinet space, and a very deep sink can interfere with the plumbing below, especially if you are working with an existing drain height in an older Red Deer home.
A sink around eight to ten inches deep suits most kitchens (deep enough for a roasting pan, shallow enough to leave the cabinet usable). Deeper than that and it is worth confirming the drain can still fall correctly to the stack, because a drain that does not slope is a drain that backs up.
An offset drain, set to the back or the corner rather than the middle, buys you usable storage under the sink and is worth asking about.
Which one
Undermount if your counter material supports it and you want the easier surface to keep clean. Drop-in if you have laminate, if you are keeping an existing counter, or if you want the flexibility to change the sink later without touching the top.
One thing that is not a reason either way: undermount is not automatically the better sink. It is a mounting method. A well made drop-in sink in a properly sealed laminate counter will outlast a cheap undermount hung on inadequate brackets.
What to ask for in the quote
The sink by name and material. Mounting method and, if undermount, the reveal you want. How the sink is supported underneath. Whether the faucet holes are drilled in the counter or the sink. Whether the plumbing disconnect and reconnect is included, and that it is done by a licensed trade, because that is the part behind the cabinet you cannot easily get back to.
